Forcings due to GHGs can be calculated from their concentrations with the formula proposed by Myrhe:

Radiative forcing calculated with Myhre’s formulas based on absorption
of long wave (IR) radiation.

When using the same scenarios for future development as described in chapter 3.1.2:

1. CO₂ emissions continue to grow year after year at the same rate than over the past few years, (CAGR 0.67%, up to 708 ppm in 2100). The do nothing scenario.
2. CO₂ emissions growth 50% faster than in scenario A, reaching 939 ppm in 2100. An almost unthinkable positive world development scenario. Highest carbon scenario until all fossil reserves will have been burned.
3. CO₂ emissions remain constant at the same level as today, 587 ppm in 2100. Savings in some countries being cancelled by expansion in others. The freeze scenario.
4. CO₂ emissions are reduced to a level 8% below the one of 1991, 527 ppm in 2100. This would be the Kyoto goal for developed signatory countries applied to all the World at once, an impossible to get lowest carbon scenario.

and assuming that methane and nitrous oxide will continue developing in parallel with the CO₂ rise rate, the following picture can be obtained.

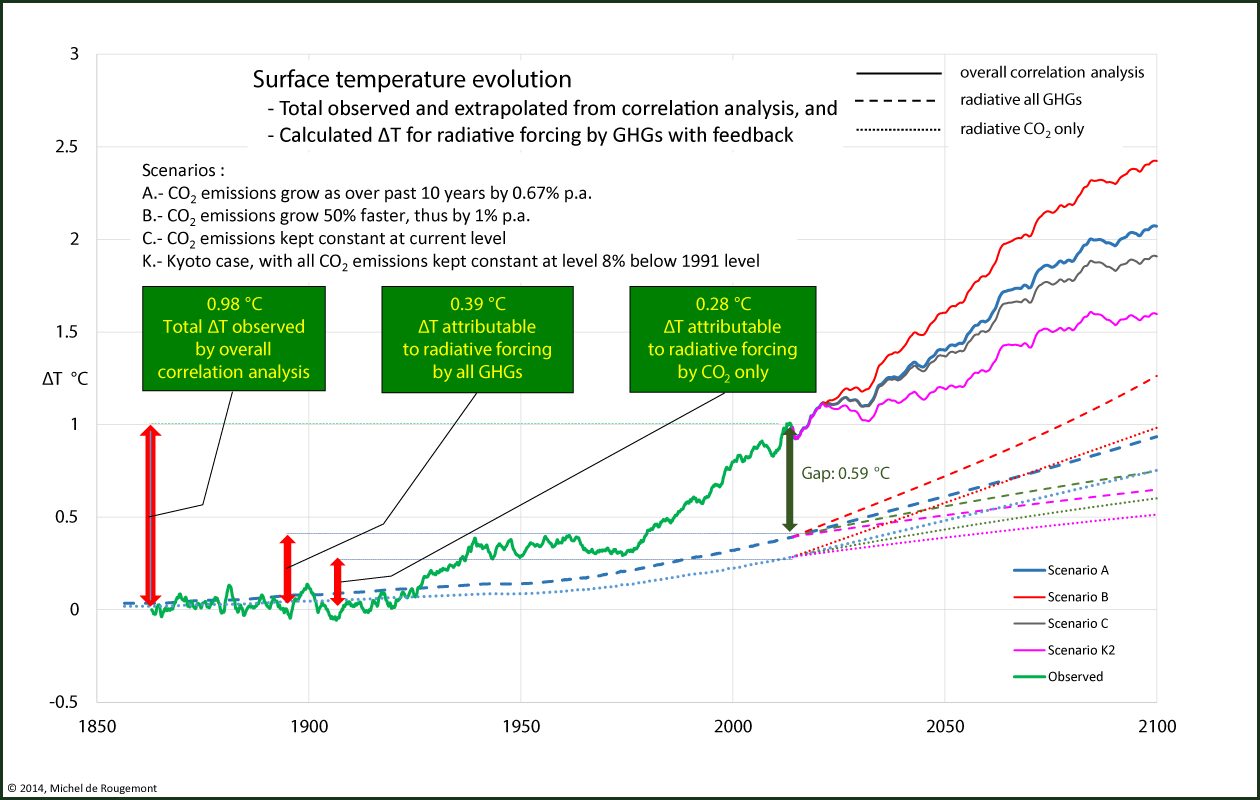

Past and future surface temperature evaluation.

In this complicated chart, the warming as observed and extrapolated is compared with the warming that can be attributed to the known greenhouse gases, taking into account the feedbacks discussed in the past chapter. The same data can be presented in a table form.

Warming observed, extrapolated from observation, and calculated from radiative forcing according to Myhre’s formulas.
Average feedback factor λ=-1.59 K W^-1 m² applied.

In this table, “ΔT not explained” is the difference between the observed warming and the one that can be attributed to GHGs only.
To produce the not explained 0.59 °C, an additional primary forcing of 2.91 W m^-2 must be caused by something that has not yet been identified.

In other words, radiative forcing by GHGs cannot explain 60% of the observed warming since the BIE.

To fill the gap, one may be tempted to tune the model, and to apply a large positive feedback factor λ to the whole system, somehow to force the forcing; but this would imply λ = +2.3 K W^-1 m² with which the stability of the climate system would be critically low, which is in full contradiction with earth’s geological history and with its resilience observed after significant disturbances such as volcanic eruptions, and tropical cyclones. And – last but not least – such a high positive feedback would be in full contradiction with all of the published feedback parameters reviewed by IPCC. Therefore, causes other than radiative forcing by GHGs must be found, naturally occurring or man-made[2].

Beginning with the industrial era or continuing the exit from the little ice age, these other factors must show a steady growth pattern up to the present time. Only conjectures can be made, since no other useful observation data is available ­ – if it would be the case, I would have incorporated it in the correlation analysis.

Man-made possible factors with steady growth pattern are:

Naturally occurring phenomena with steady growth pattern can be:

• Continuing of the exit of the Little Ice Age, for which no verifiable explanation will ever be available, as also for the entry and exit of Roman Warm Period, Dark Age Cold Period, and Medieval Warm period.
• Growing phase of a very long cyclic parameter having a period of various centuries with impact on climate by changing aerosol stability and cloud formation such as solar wind (high energy particles) or cosmic rays.

Solar impact does not consist only of thermal effects due to electromagnetic radiation in the UV-Vis-IR range. Complex chemical reactions are also induced at altitude as well as at the ground (photosynthesis) that can lead to enhanced or reduced aerosol or cloud formation.

The Cosmics Leaving Outdoor Droplets (CLOUD) experiment at the CERN (cloud.web.cern.ch) studies the influence of cosmic rays on water droplet nucleation to form clouds in presence of aerosols; it is still underway. The link to a potential climate response is far from being quantified.

Regarding clouds and cloud formation, current knowledge is quite scarce. With +0.54 °C per percent cloudiness, the model sensitivity is quite significant. In a previous report, IPCC dared showing how inaccurate observations and models are:

Cloudiness December – February, as observed and evaluated by 11 models
Source: IPCC 2001 assessment report, chapter 8.
Note: the sensitivity of surface temperature to cloudiness is + 0.5 °C for a cloudiness increase by 1 percent.

Other possible interactions with solar activity are shown in the following scheme.

Possible mechanism of solar influence
Source: http://st4a.stelab.nagoya-u.ac.jp/nagoya_workshop_2/pdf/3-2_Miyahara.pdf

This is an area of high awareness but on which little is known about.

• Other water feedback, in particular change of phase with large latent energy involved.
• Slow release of energy previously accumulated in the oceans.

This would stay in contradiction with the latest IPCC’s assessment that it is virtually certain (IPCC 5^th report) that the upper layer of the oceans has warmed since the BIE, thus not cooled by releasing stored energy.
However, we shall remember that a layer of only 3.4 m has the same heat capacity as the whole atmosphere, and that evaporation involves huge amounts of energy in adiabatic or isothermal conditions. Considering the whole ocean, an accurate time dependent enthalpy balance is yet to be established and validated.

A mix of these phenomena – and others not invented here – may well fill the 2.9 W m^‑2 forcing gap.

In any case, to attribute all ills – if any – to the carbon dioxide molecule appears to be an oversimplification and an exaggeration.

Potential effect of carbon dioxide emission reduction.

From the calculations presented here it is possible to show what differences could be achieved in 2047 or at the end of this century according to the chosen scenario. Some important findings:

• Overall, the doing nothing scenario A may result in a temperature increase of 0.4 °C over the present 2014 situation and of 1.1 °C in 2099 (1.4 °C and 2.1 °C since BIE).
  With this same scenario the contribution of CO₂ alone may be 0.2 °C and 0.5 °C.
• The worst case highest carbon scenario for warming – but an ideally best case for economic and social development (scenario B) – may see the temperature increase by 0.6 °C in 2047 and by 1.4 °C in 2099.
  In this case, the contribution of CO₂ alone would be 0.3 °C and 0.7 °C.
• Adopting the best Kyoto-like lowest carbon scenario (K) as compared to doing nothing (A), the warming would be reduced by 0.2 °C in 2047 and by 0.6 °C in 2099.
• The difference between the two unrealistic best and worst cases (scenario K and B) is 0.4 °C in 2047 and 0.8 °C at the end of the century.
• In all cases the temperature continues to increase, although slower as CHG concentrations increase (logarithmic dependency).

[1]     One could be tempted to ask “why 20147 ?“, and the answer being “guess why!”

[2]     Women also. The reader is gently asked to consider that in this present text the masculine may, but has not to, mean the feminine, and vice versa. Grammar has no concern for equality, however it is useful to [try to] follow its rules.

[3]     Bond, T. C., et al. (2013), Bounding the role of black carbon in the climate system: A scientific assessment, J. Geophys. Res. Atmos., 118, 5380–5552, doi:10.1002/jgrd.50171.
