This mode of heat transfer takes place when the electromagnetic radiation emitted by two opposing surfaces are not at the same temperature. The net heat that is exchanged corresponds to the difference of the intensity of the radiation leaving the warm surface and the one leaving the colder surface.

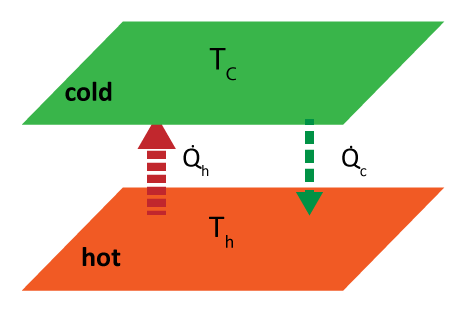

In the simplest case of two parallel black body surfaces:

  • Emitted radiation from any surface:

eq ST radiation
(Stefan Boltzmann equation)

  • Heat exchanged:

eq radiative transfer

Where:

Q is the heat flux and the net heat transfer [W m-2]

σ is the Stefan-Boltzmann constant, 5.670 373×10−8 [W·m−2·K−4]

A is the area of the surface [m2]

T, Th and Tc are the absolute temperatures, hot and cold. [K]

radiative heat transfer

In actual, complex systems, two further parameters must be taken into account: a form factor relating the exposure of a curved surface to another one at different incidence angles, and the different emissivity of the materials of which each surface is made.

Important to remind:

  • a net heat flow is calculated here. Each surface absorbs what comes from the other and emits at its own temperature. Thus heat will be transferred from the warm to the cold, and not vice versa, until an equilibrium is reached. Therefore, the 2nd principle of thermodynamics is respected.
  • the phenomenon takes place in vacuum, as for example between the Sun and the Earth, no matter is needed in between. However, it takes also place in the presence of a gas, air for example. Then a portion of the radiation can be absorbed by components of the gas mixture, and will be further conveyed, layer by layer, into the net direction from warm to cold. Also, convection and conduction will interfere. Complex, mixed calculations are required.
  • the material of which the warm surface is made loses energy; its temperature will decrease at a velocity that is limited by its thermal conductivity, for example approximately five times faster for silver than for a brick wall.
  • a heat balance will be reached, after transferring the enthalpy (heat content) lost by the warm surface to the cool side. At Tf , the final equilibrium temperature:
  • eq heat transfer balance

    Where m is the mass [kg] and Cp the specific heat [J kg-1 k-1] of the hot and cold materials.

  • In a stationary regime, as for example the on-going heating of the Earth by the Sun and the cooling of the Earth to the outer space, the temperatures at the ground and in the atmosphere establish themselves at different levels corresponding to the prevailing conditions (incident radiation, albedo, cloudiness, forcing). See the two layers model.

During nights with clear sky, the cooling of the ground will be fast because there is almost no opposing surface at a slightly colder temperature. During a covered night, the clouds form a shield that is not as cold as the outer atmosphere; the net heat flux is reduced thanks to the smaller temperature difference, and it takes a longer time for the ground to cool down. This is why the morning temperature in the desert can be pretty low, colder than in a temperate and humid region. Swimming pool owners know that they need to cover the surface with an isolating sheet to prevent too much cooling during the night. But note that they should also cover it during the day, this time to prevent evaporation and loss of water. But then there would remain no time for swimming!
